PROTEAN®

fragment plates

True in-situ contouring after screw insertion

Malleable in three planes

Vertical Plane

Protean® Vertical Bend
30º Per Node

Horizontal Plane

Protean® Horizontal Bend
5º Per Node

Traverse Plane

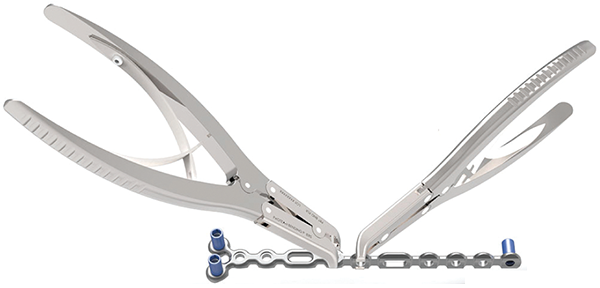

Protean® Transverse Bend
45º Per Node

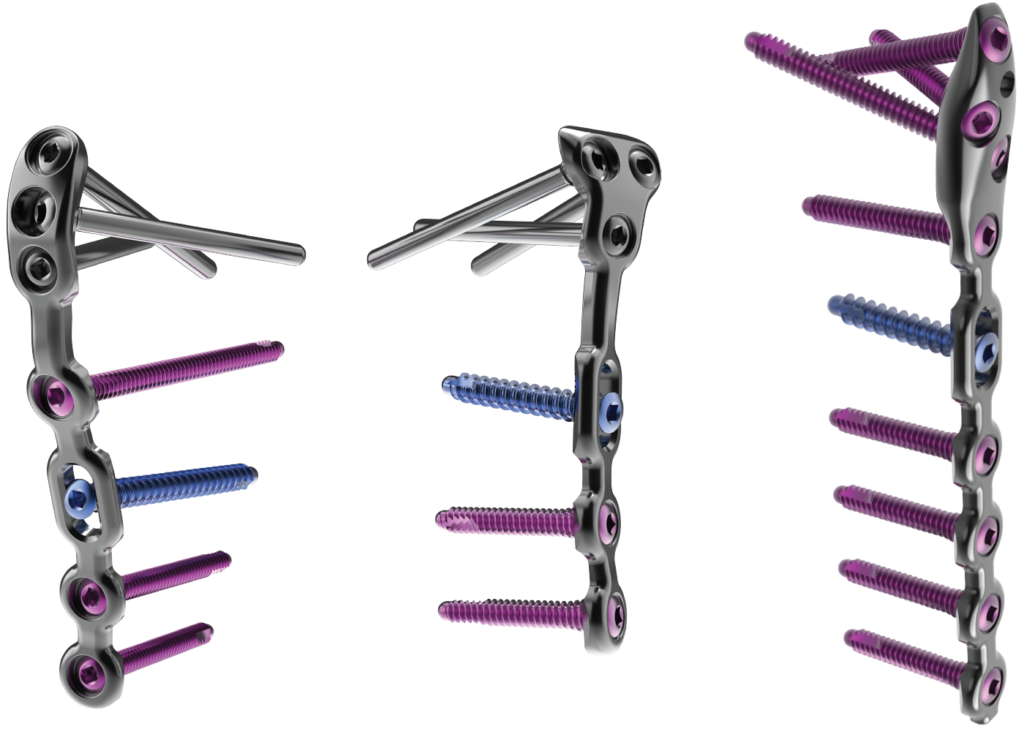

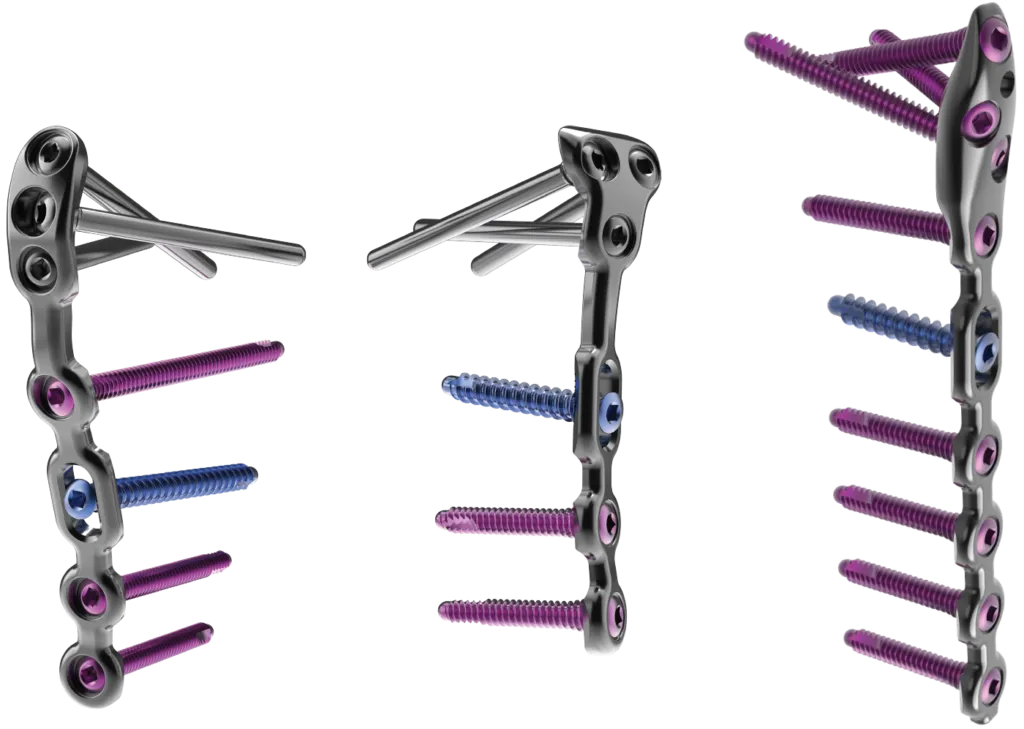

Low profile, indication-specific options designed for optimal subchondral support

Low profile, indication-specific options designed for optimal subchondral support
Low profile, indication-specific options designed for optimal subchondral support - X-Ray View 1
Low profile, indication-specific options designed for optimal subchondral support - X-Ray View 2

Additional fragment plating options:

protean fragment double or double hockey stick
Double Hockey Stick
protean fragment y2 or Y – Straight
Y – Straight

360º Construct Rotation

(Drag to rotate)



Resources

1Hoekzema N, Gray R, Orbay J, Rubio F, Vernon L, Imada A, Mercer D. Intraoperative radiographic method of locating the radial head safe zone: the bicipital tuberosity view. J Shoulder Elbow Surg. 2020;29(12):2668-2673.
