GEMINUS®

volar plating system

Optimized subchondral support while minimizing the potential for soft tissue injury

Dual head design protects flexor tendons by providing the lowest profile at the watershed line1

GEMINUS® Full Diagram

Screw trajectories designed to provide optimal subchondral support

GEMINUS® distal radius late screw trajectories form multiple angles
a 20˚ elevated lateral fluoroscopic view for the Geminus® plating system
a tangential x-ray view of the Geminus® plating system
rotating the wrist under fluoroscopy for the Geminus® plating system

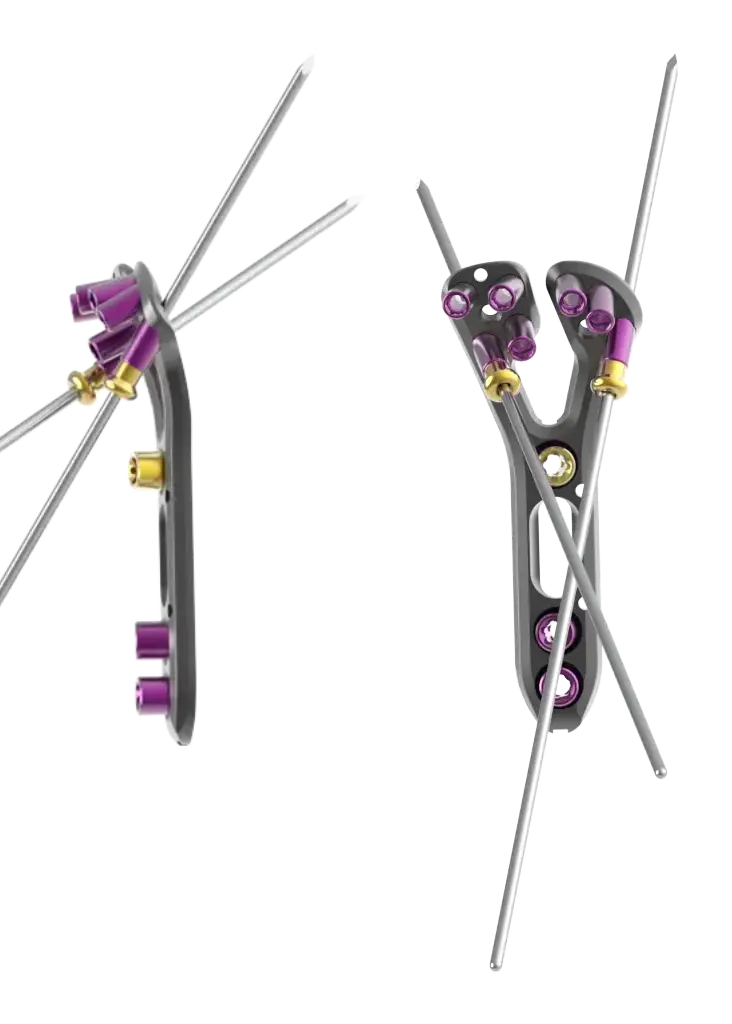

AIMing Guides are pre-inserted distal drill guides to confirm reduction and screw trajectories prior to screw insertion

AIMing Guides X-Ray view
AIMing Guides X-Ray view

Hook plate option allows extending fixation to secure volar marginal fragments

Hook plate option allows extending fixation to secure volar marginal fragments​
Hook plate option X-Ray view

FREEFIX® technology allows the fracture to dictate screw placement

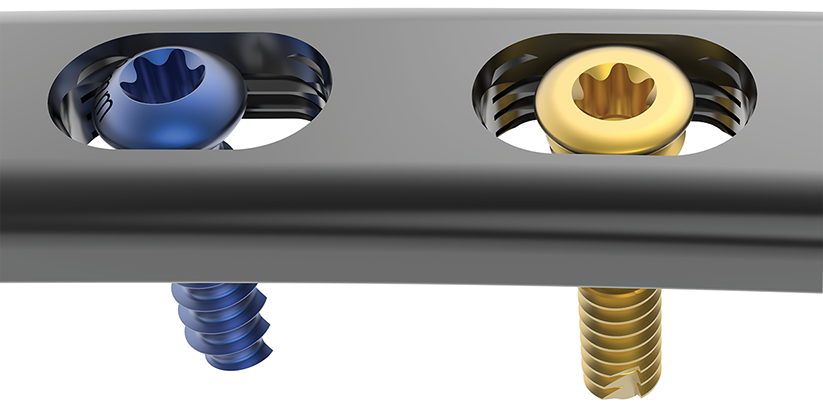

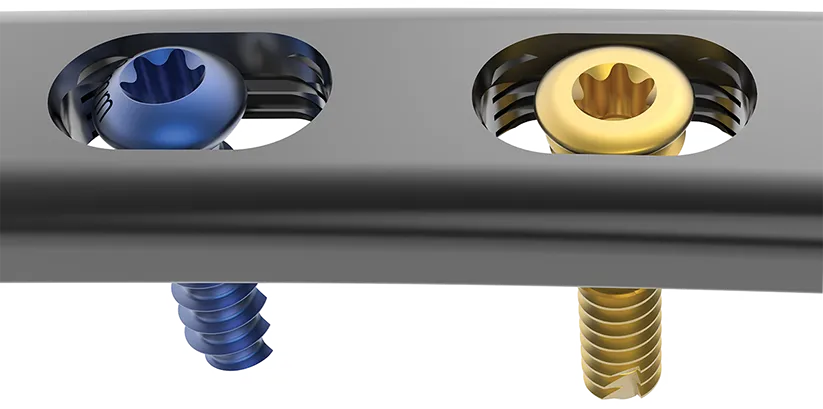

Both compression and locking screws can be inserted in any position in FREEFIX® slots

Both compression and locking screws can be inserted in any position in FREEFIX® slots

Patented horizontal thread pattern allows dynamic compression with locking screws

Patented horizontal thread pattern allows dynamic compression with locking screws

1.5mm of dynamic compression per slot

1.5mm of dynamic compression per slot

1.5mm of dynamic compression per slot X-Ray View 1
1.5mm of dynamic compression per slot X-Ray View 2

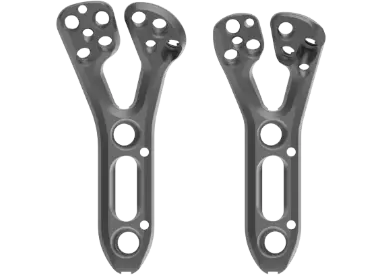

GEMINUS® 3 Hole plates

3 Hole Plates:
Standard & Narrow

GEMINUS® 4 Hole plates

4 Hole Plates:
Wide, Standard & Narrow

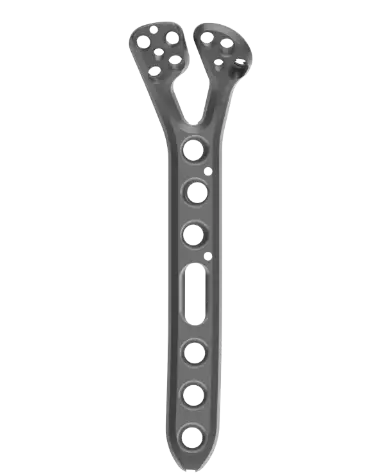

GEMINUS® 7 Hole plates

7 Hole Plate:
Standard

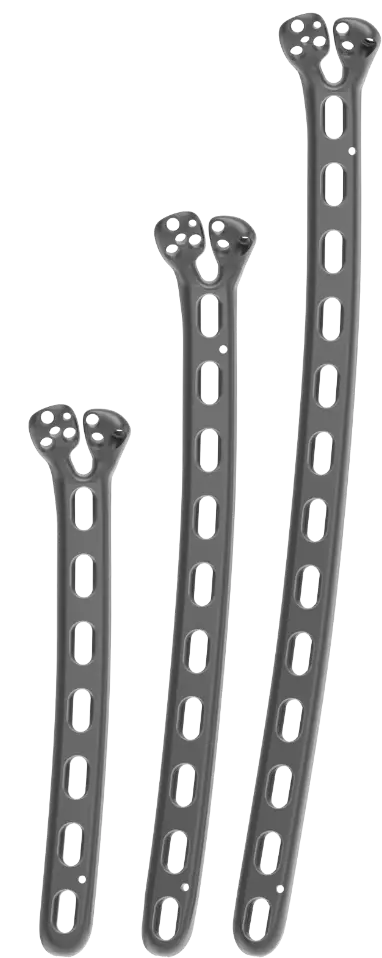

GEMINUS® XL Plates

XL Plates:
With FREEFIX® Slots

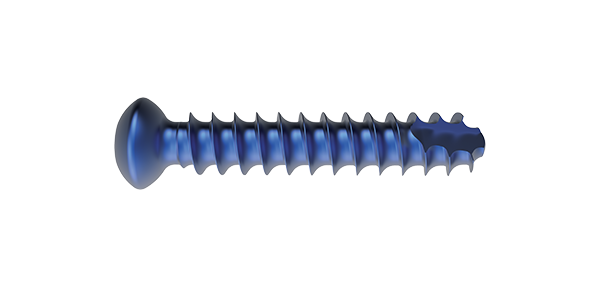

3.5mm Cortical Compression Non Locking Screw

3.5mm Cortical Compression
Non-Locking Screw

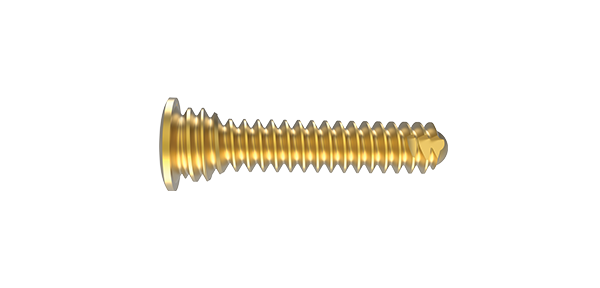

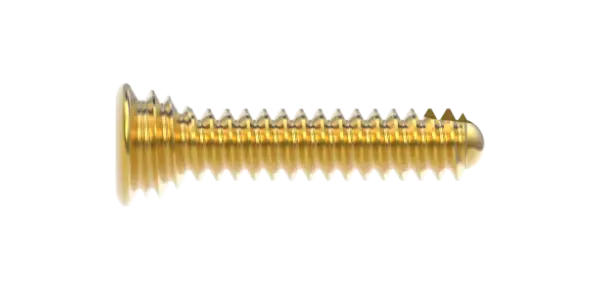

3.5mm Cortical
Locking Screw

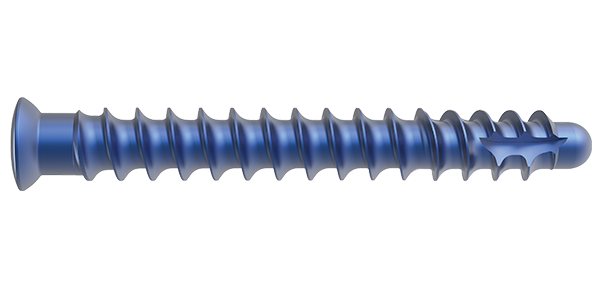

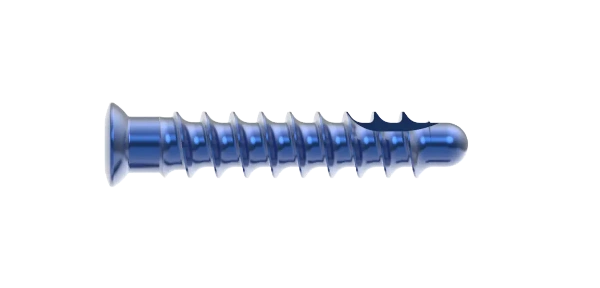

2.7mm compression non locking screw

2.7mm Compression
Non-Locking Screw

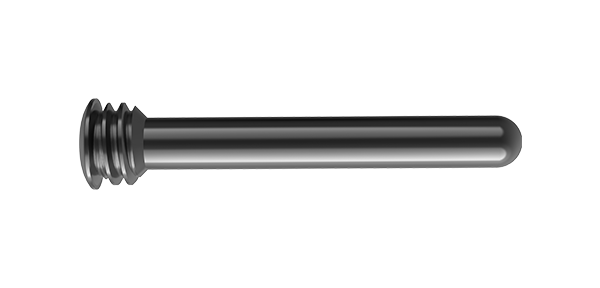

2.0mm Smooth Locking Peg

2.0mm Smooth
Locking Peg

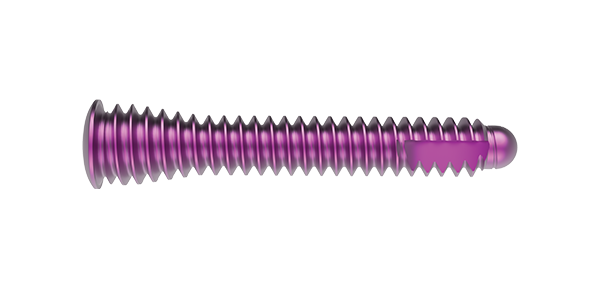

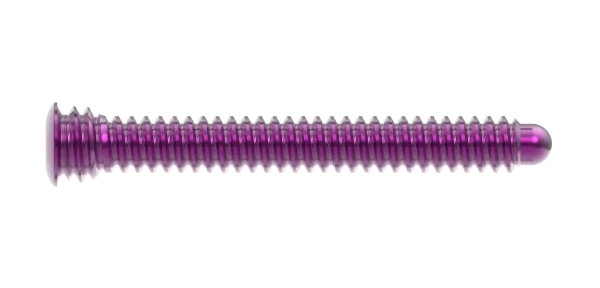

2.3mm threaded locking screw

2.3mm Threaded
Locking Screw

2.5mm Cannulated
Polyaxial Locking Screw

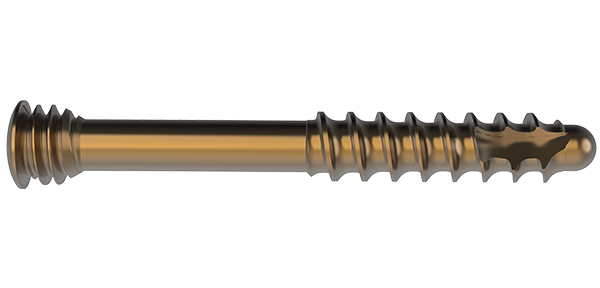

2.7mm high compression locking screw

2.7mm High Compression
Locking Screw

360º Construct Rotation

(Drag to rotate)



Resources

1Limthongthang R, Bachoura A, Jacoby SM, Osterman AL. Distal radius volar locking plate design and associated vulnerability of the flexor pollicis longus. J Hand Surg Am. 2014;39(5):852-860.

2Salas C, Brantley JA, Clark J, Reda Taha M, Myers OB, Mercer D. Damage in a distal radius fracture model treated with locked volar plating after simulated postoperative loading. J Hand Surg Am. 2018;43(7):679.e1-679.e6.

3Orbay JL, Rubio F, Vernon LL. Prevent collapse and salvage failures of the volar rim of the distal radius. J Wrist Surg. 2016;5(1):17-21.

4McIver ND, Salas C, Menon N, Heifner J, Mercer D. Appropriately matched fixed-angle locking plates improve stability in volar distal radius fixation. J Hand Surg Glob Online. 2022;4(3):135-140.

5Orbay J, Shah A, White BD, Patel A, Vernon L. Volar Plating as a Treatment for Distal Radius Fractures. Plast Reconstr Surg Glob Open. 2016;4(9):e1041.
