FREEFIX® Humeral Fixation Set

The next generation of distal and midshaft humerus fracture management

A true single, fixed angle construct

TiBeam® technology connects the medial and lateral plates to allow for compression across the trochlea

TiBeam® Use Trajectory Guide Diagram

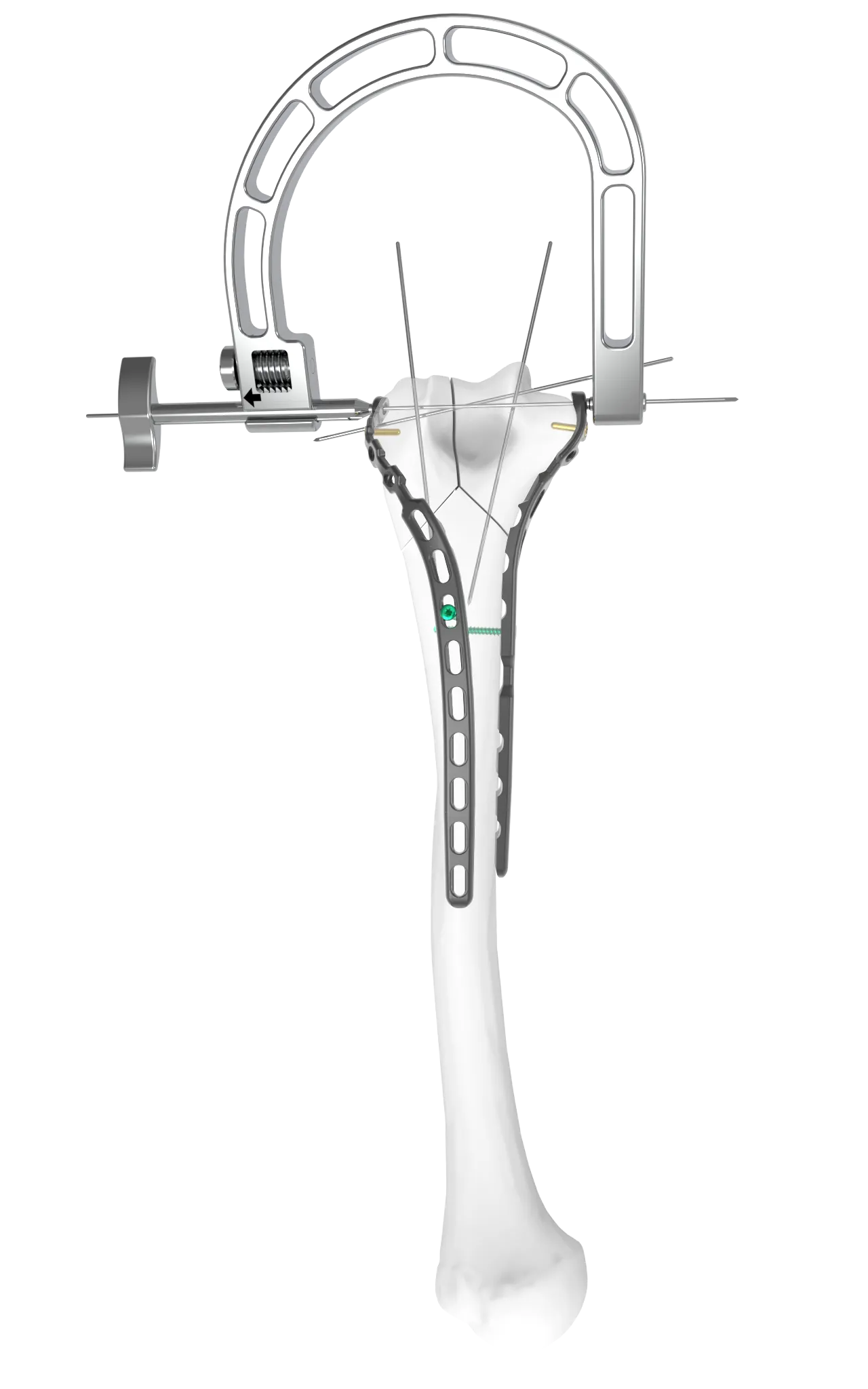

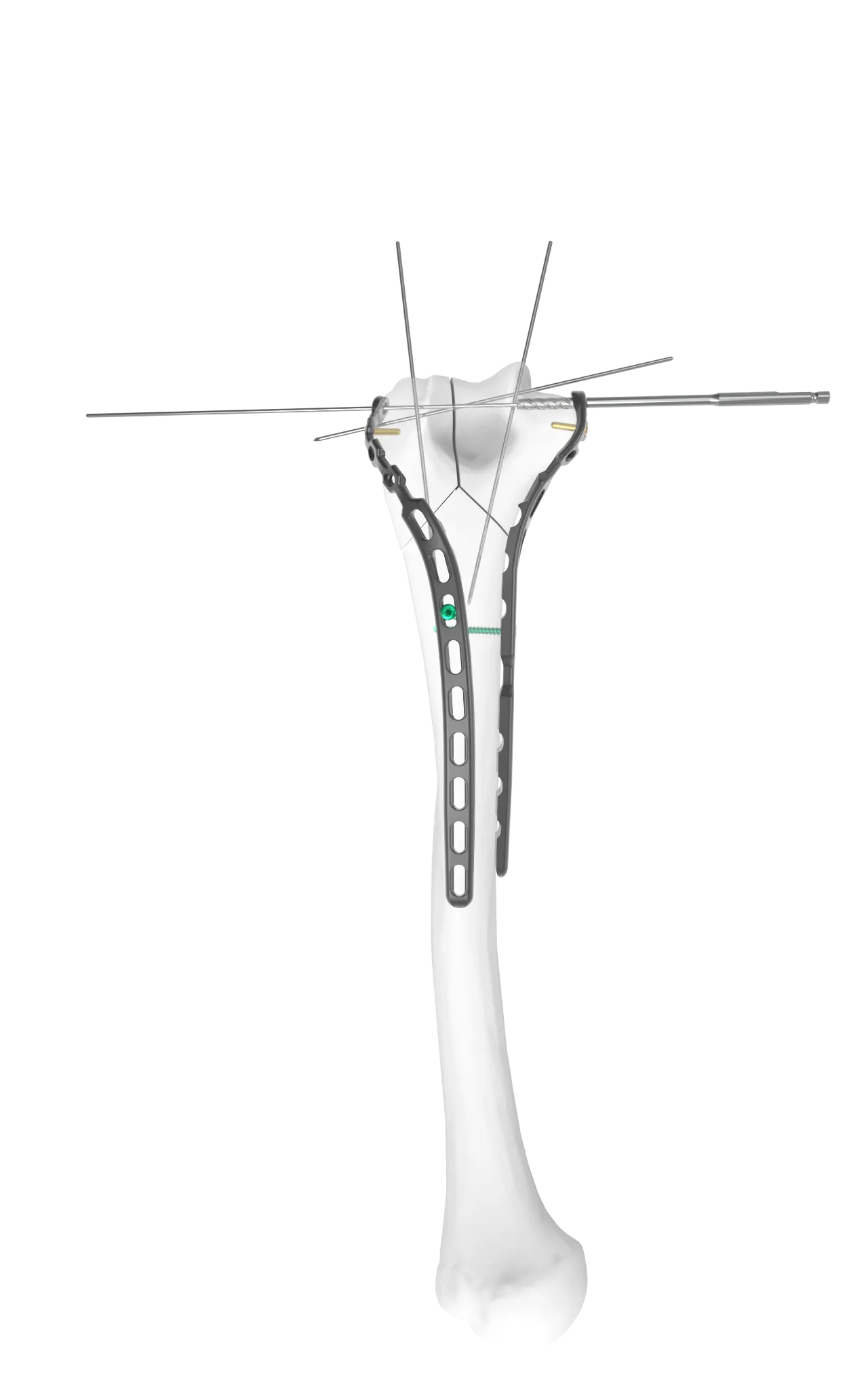

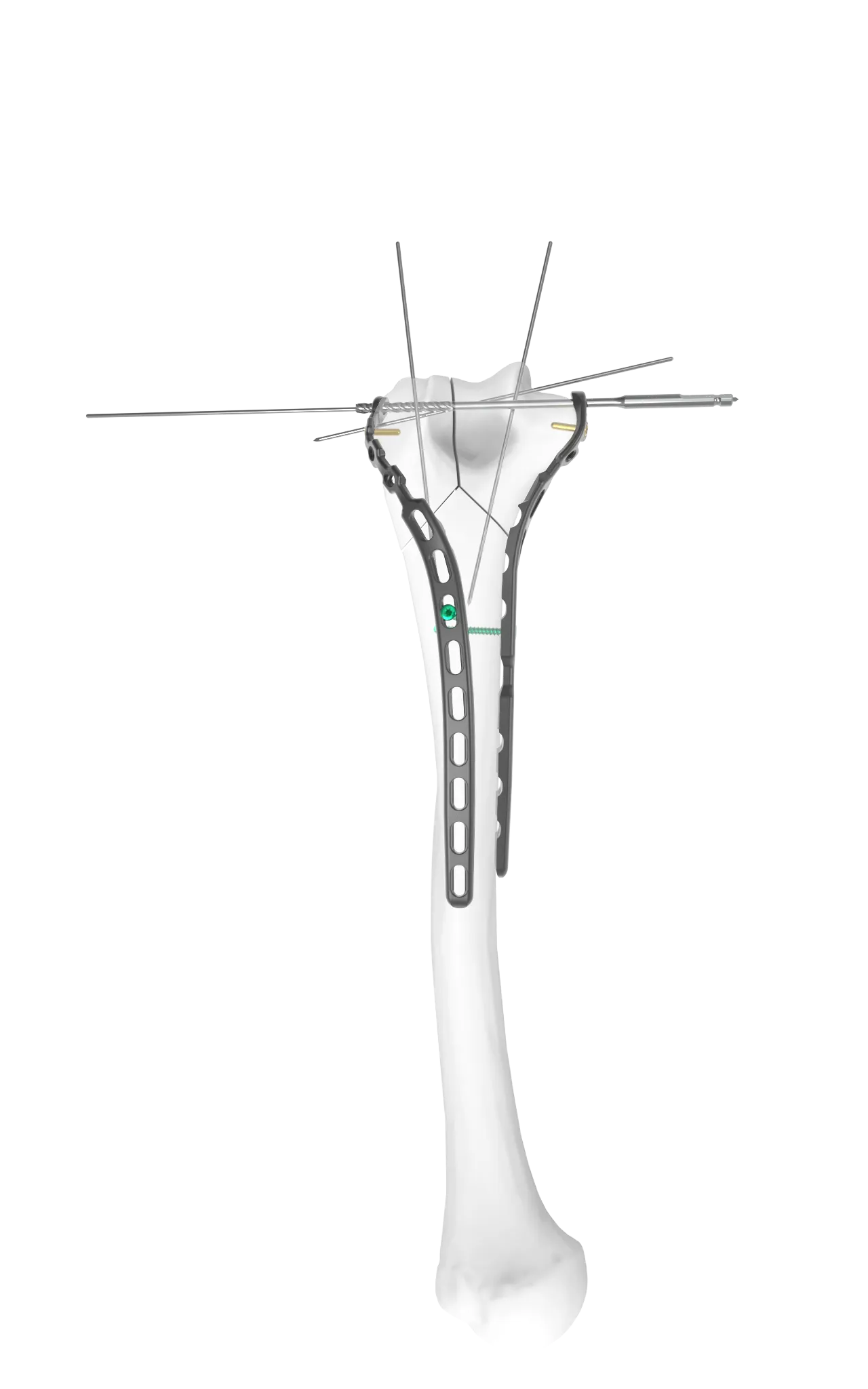

Use trajectory guide to place k-wire through the most distal holes of the medial and lateral plate.

TiBeam® Drill Through Plates Diagram

Drill through both plates with the 3.7mm cannulated drill.

TiBeam® Overdrill Diagram

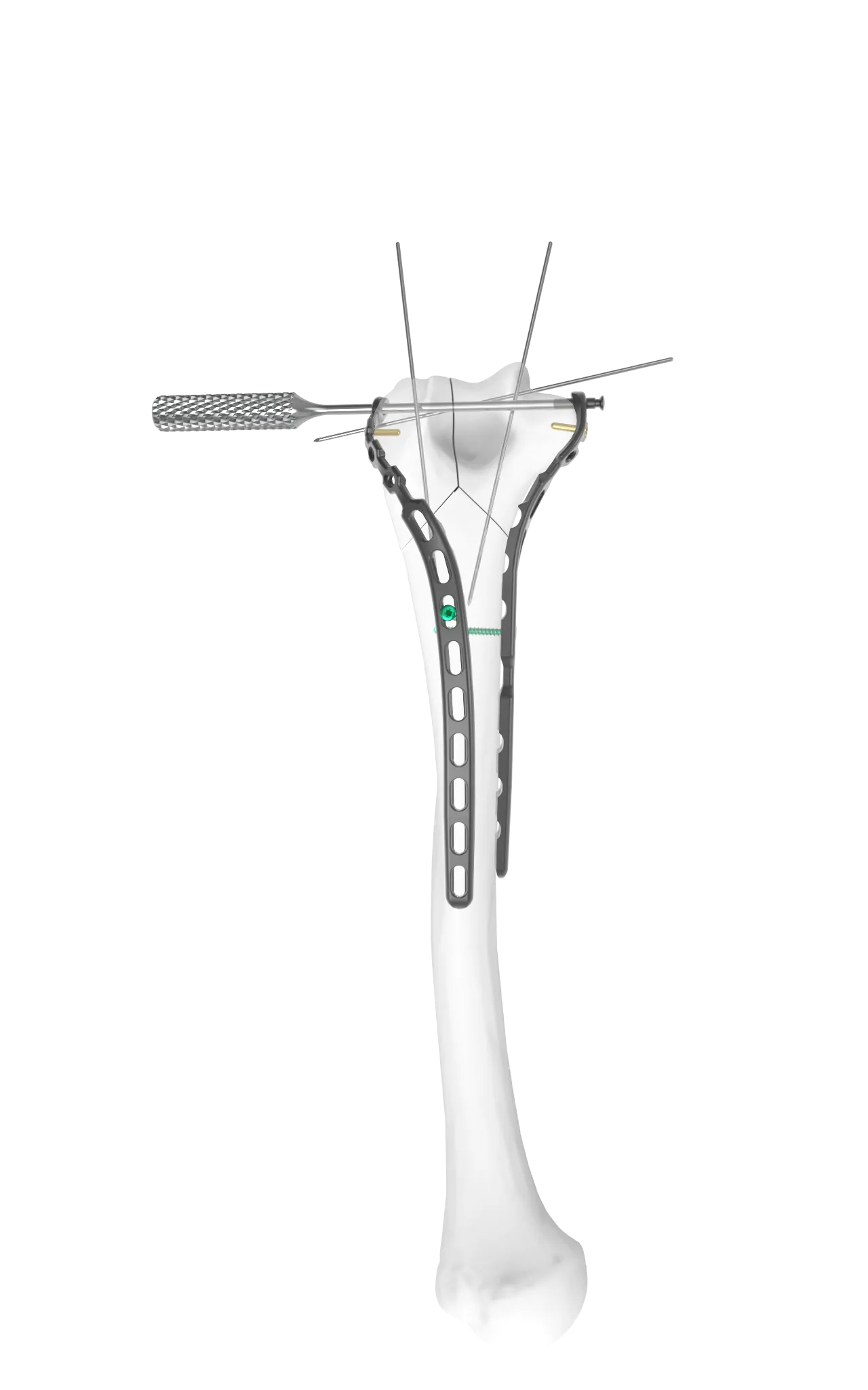

Overdrill with the 4.0mm stop drill.

TiBeam® Insert Female Component Through Plate Diagram

Use the insertion tool and T-10 driver (not pictured) to insert the female component through the plate.

TiBeam® Introduce Male Component Diagram

Introduce male component using T-10 driver (not pictured).

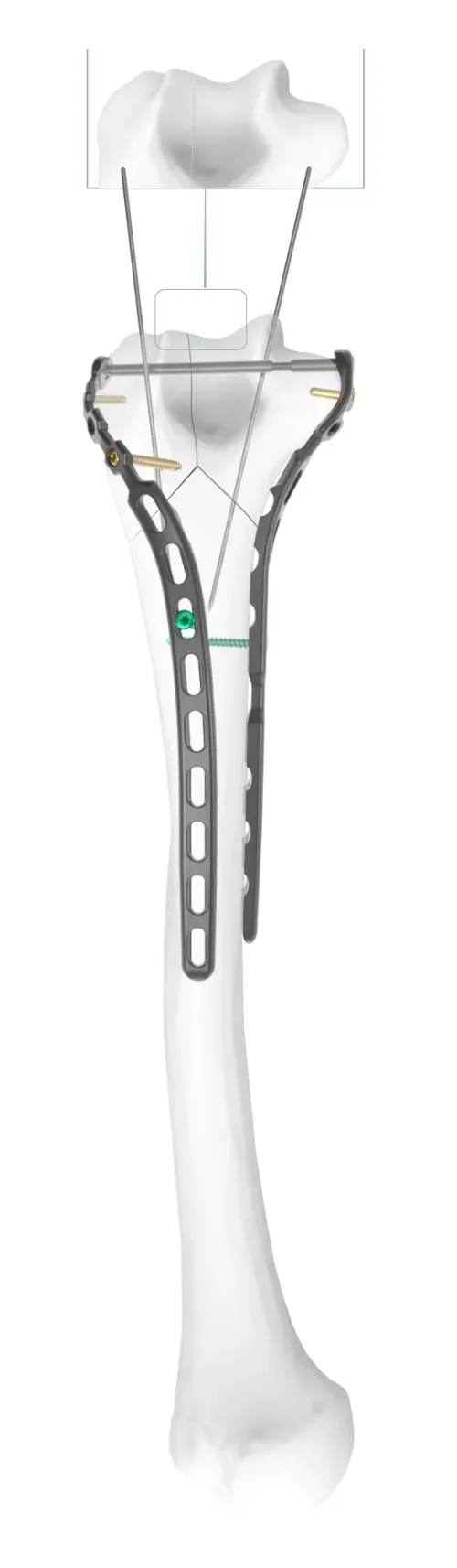

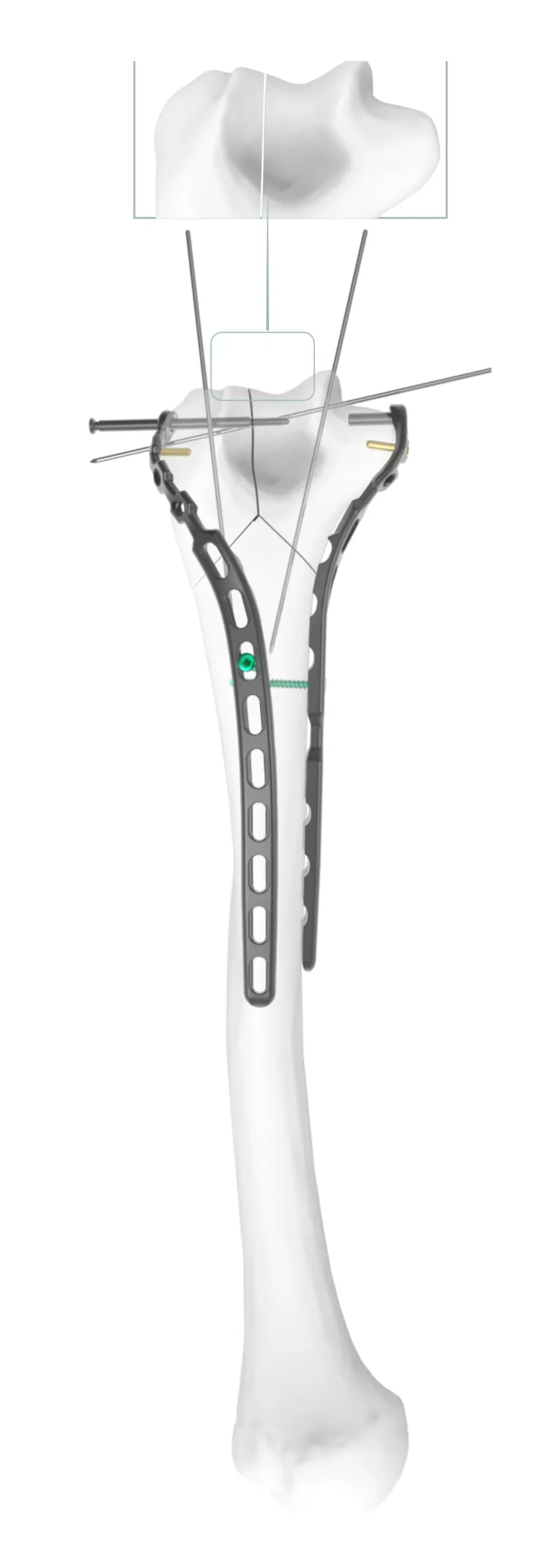

TiBeam® Thread Male Component Into Female Component Diagram

Thread the male component into the female and continue advancing until the desired compression is achieved.

Distal humerus plate combinations with TiBeam® Technology

Addressing multiple fracture patterns, surgeon preference, and patient anatomy

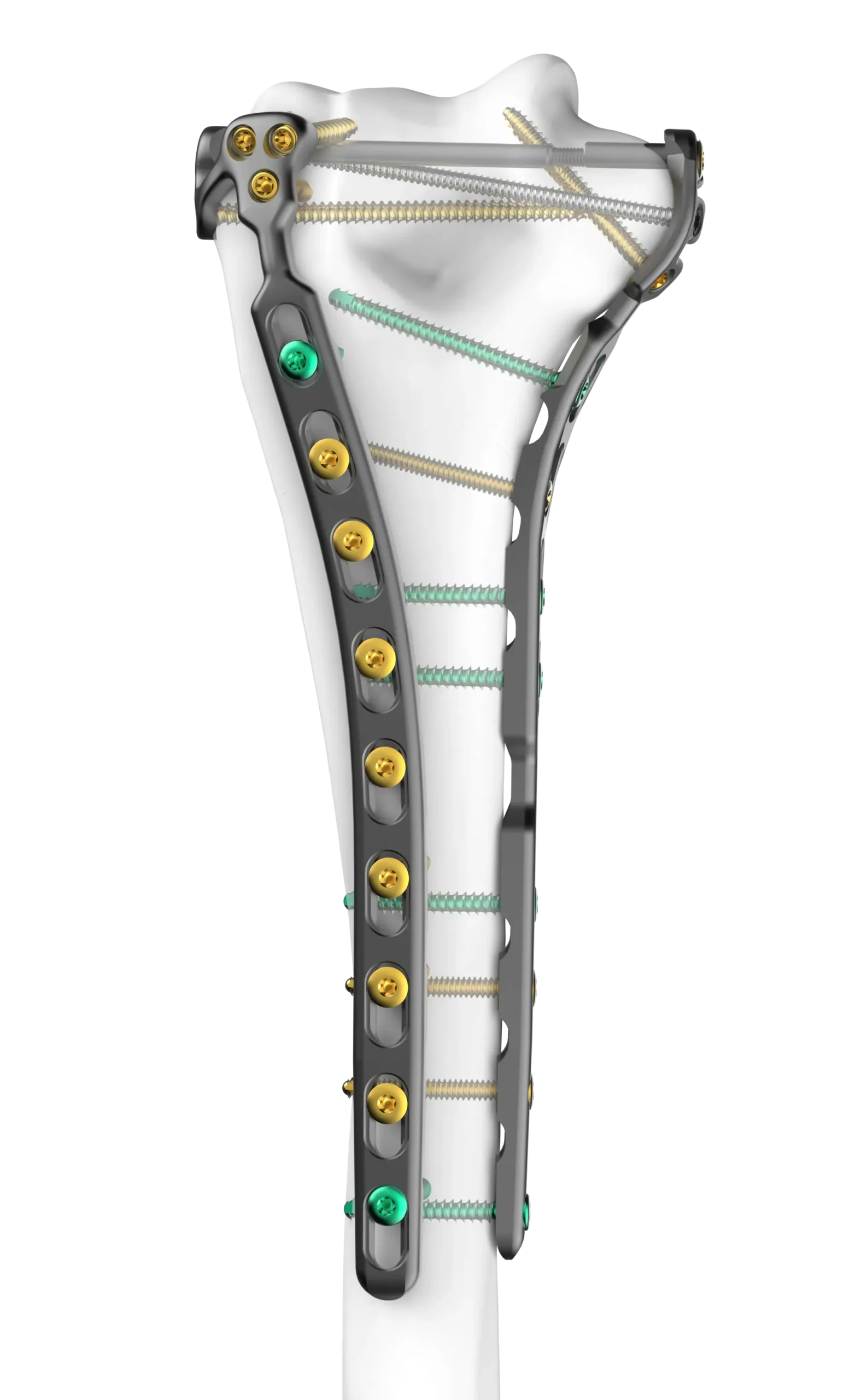

Plate Combination LATERAL CAPITELLAR MEDIAL DIRECT Image

Lateral Capitellar

70mm, 100mm, 130mm, 160mm

Medial Direct

75mm, 105mm, 135mm, 165mm

Plate Combination LATERAL DIRECT MEDIAL DIRECT Image

Lateral Direct

85mm, 115mm

Medial Direct

75mm, 105mm, 135mm, 165mm

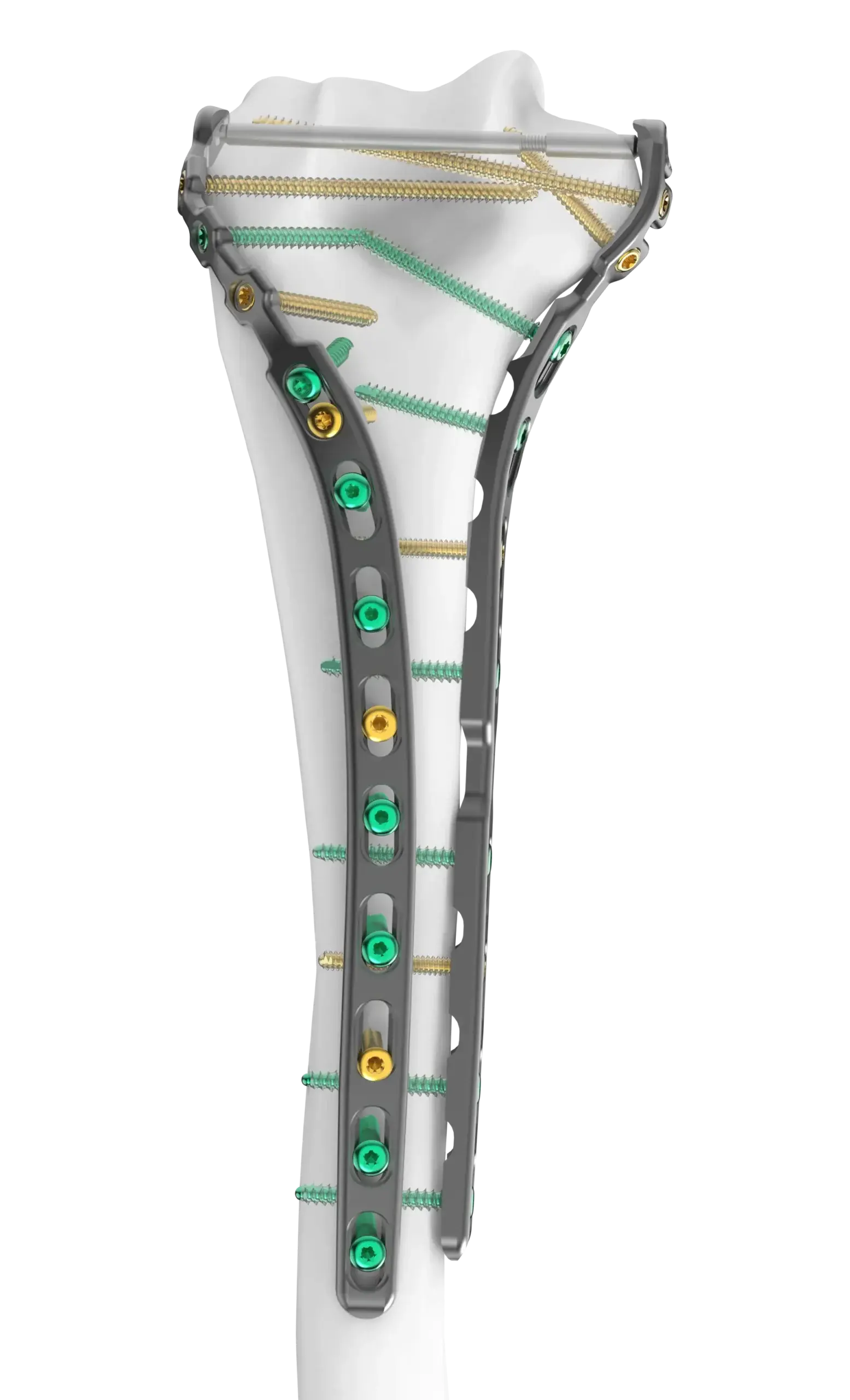

Plate Combination LATERAL HELICAL MEDIAL DIRECT Image

Lateral Helical

85mm, 115mm, 145mm, 175mm

Medial Direct

75mm, 105mm, 135mm, 165mm

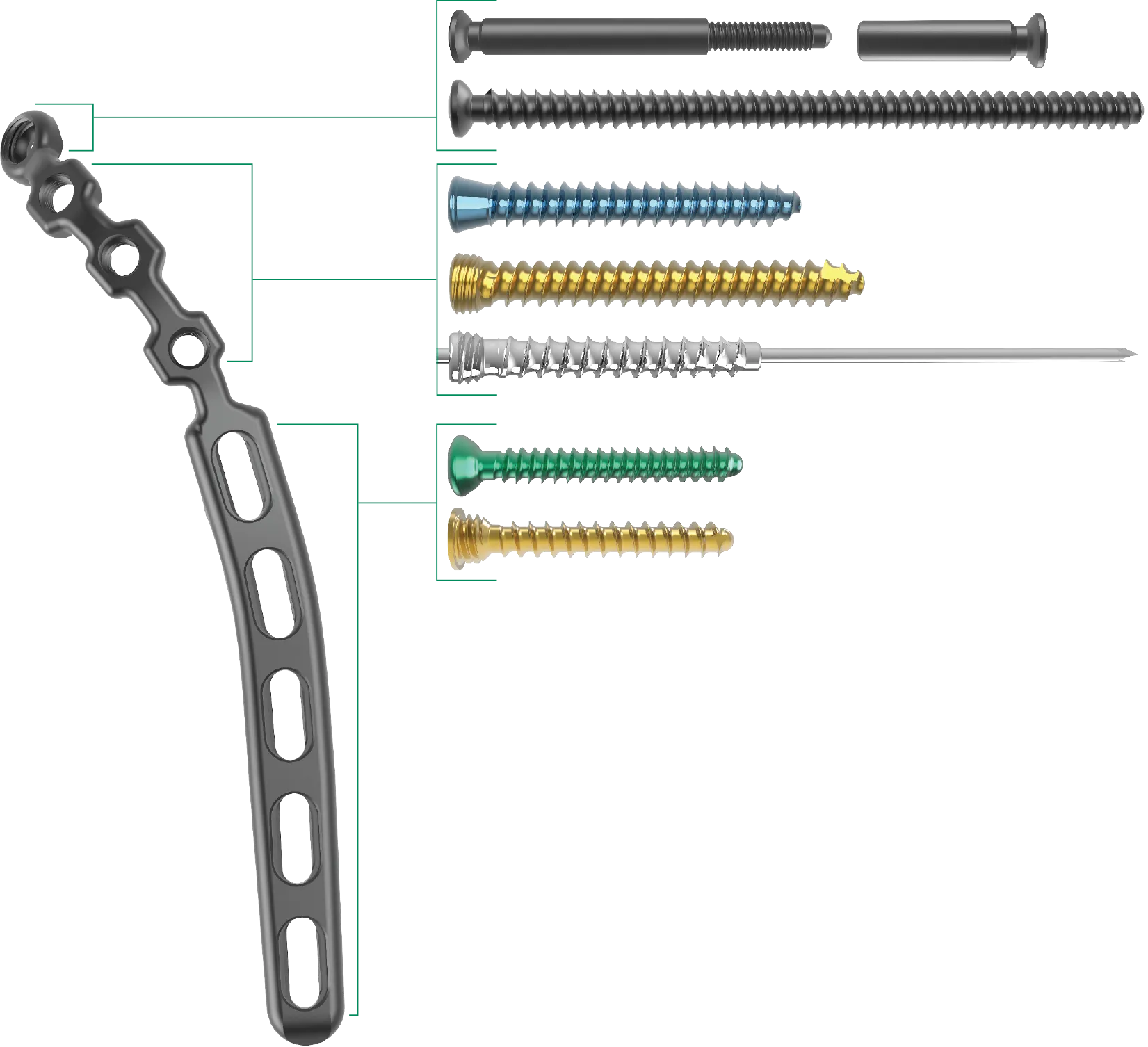

Metaphyseal and diaphyseal specific screw options

FREEFIX HPS 1

Midshaft and supracondylar options designed for maximum torsional resistance

Optimized bottom surface for wider contact area with the bone

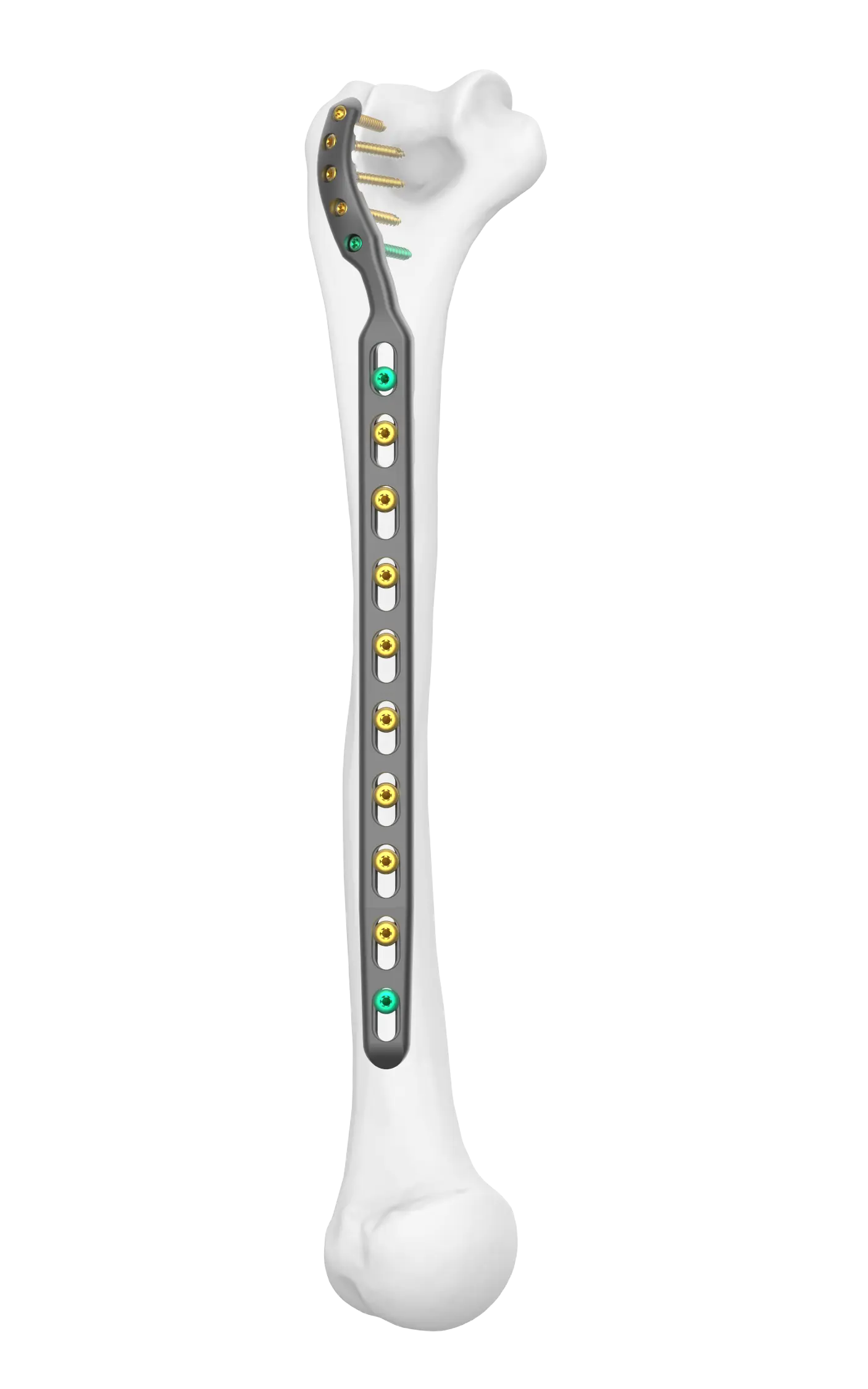

supracondylar options supracondylar with extension image

Supracondylar

with extension for distal fractures
142mm, 196mm, 250mm

supracondylar options mid shaft narrow image

Midshaft Narrow

136mm, 172mm, 208mm, 244mm

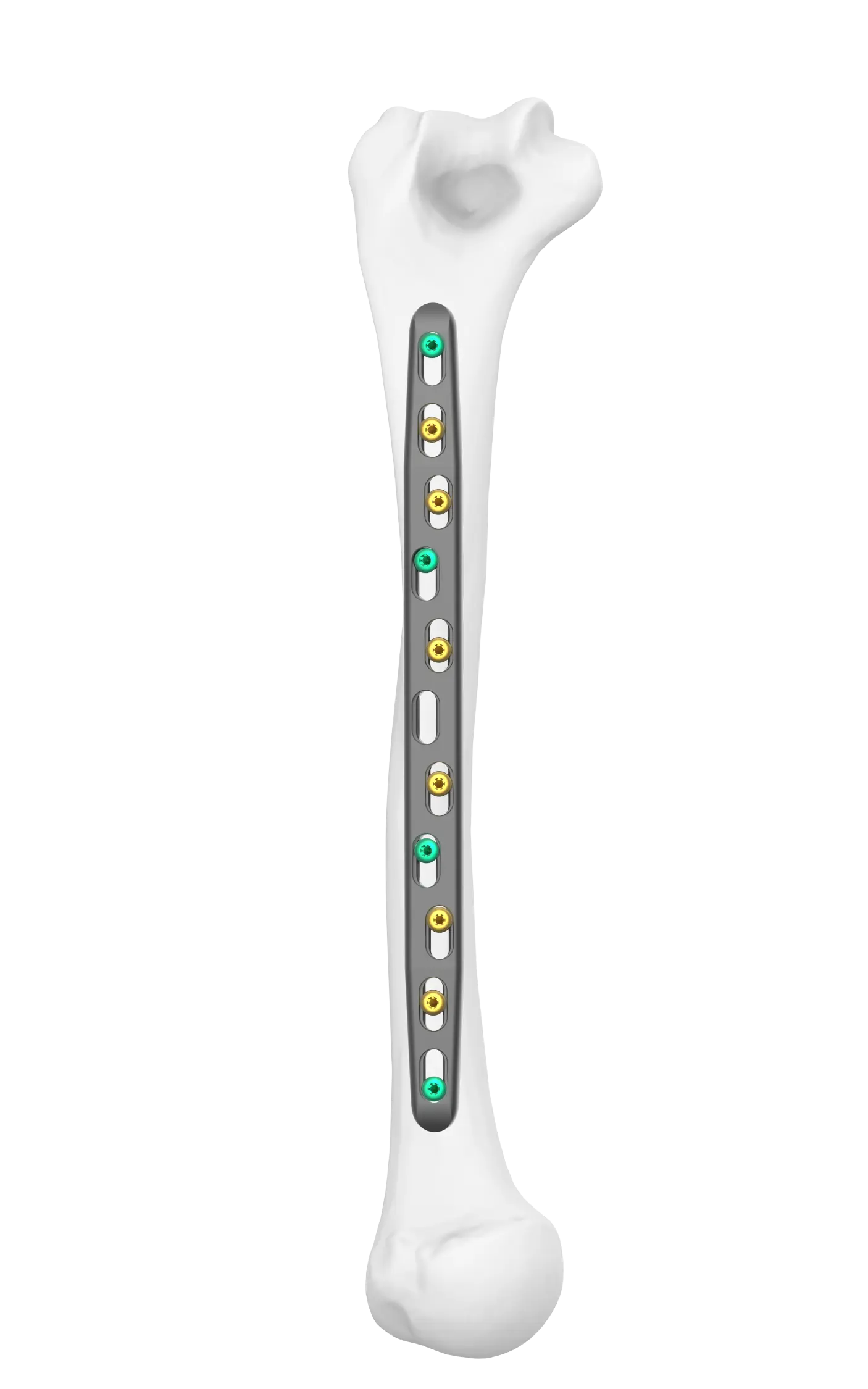

supracondylar options mid shaft broad image

Midshaft Broad

136mm, 172mm, 208mm, 244mm

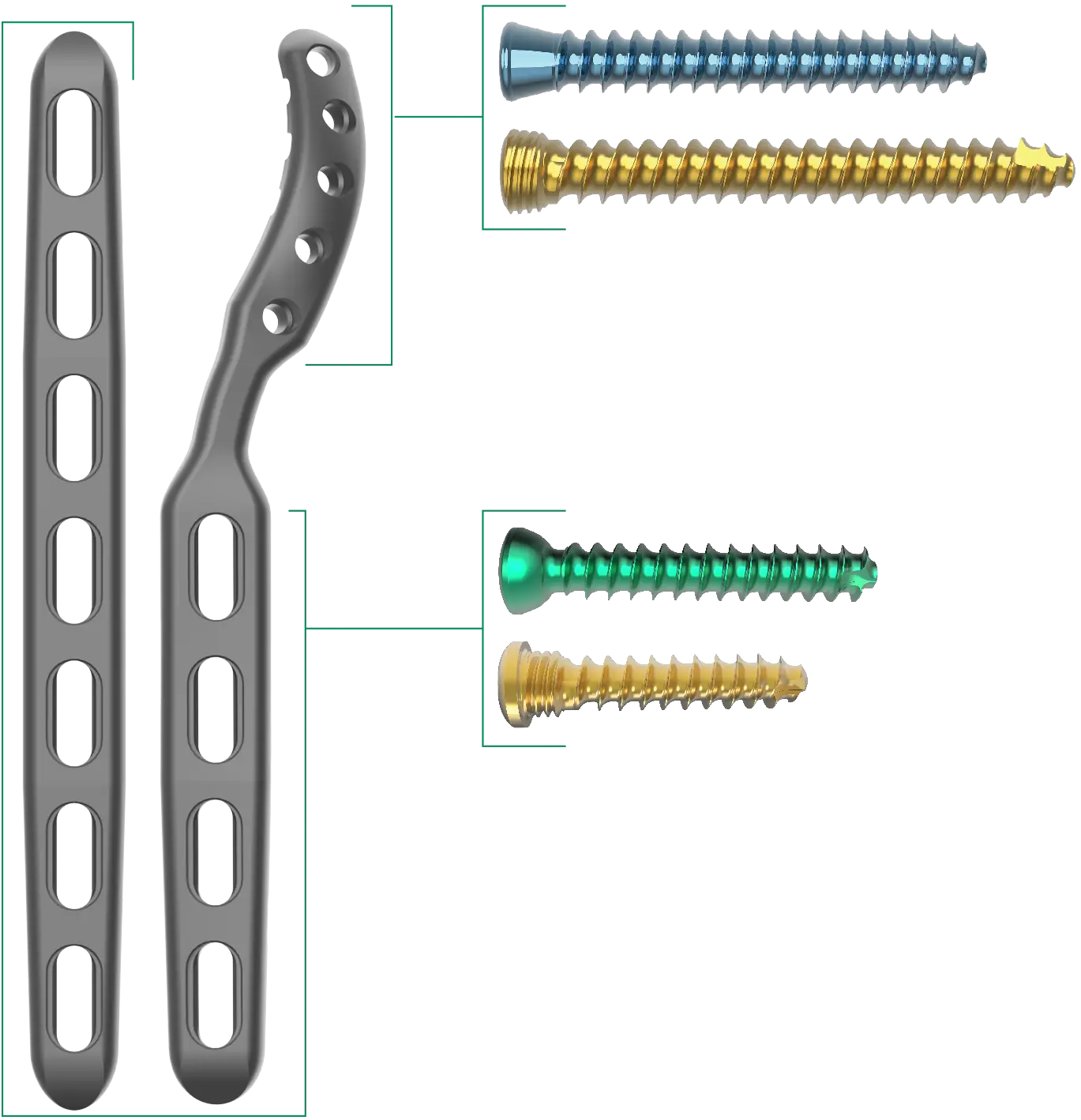

Screw options for maximum fixation

FREEFIX HPS 2

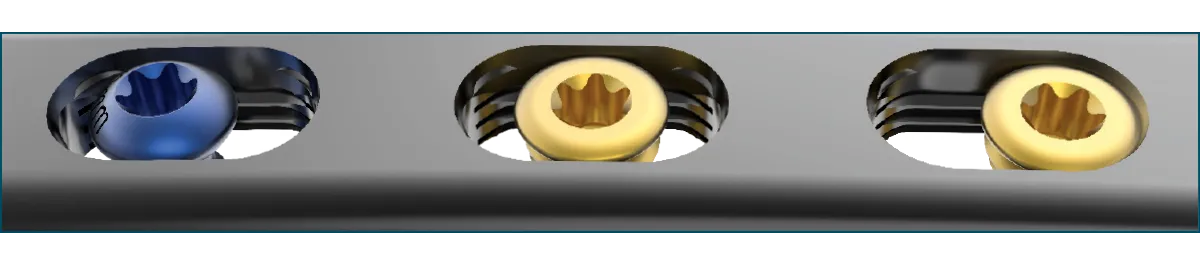

FREEFIX® technology allows the fracture to dictate screw placement

FREEFIX HPS 3

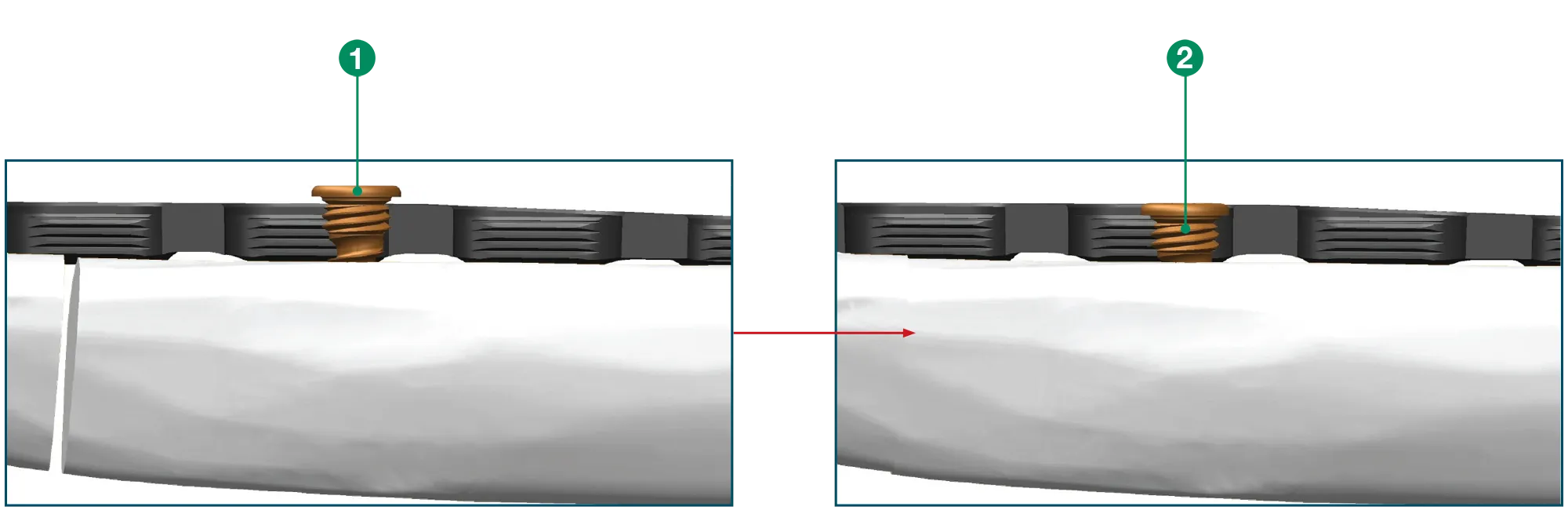

  1. Head of the eccentrically placed screw engages the plate, compressing the fracture
  2. Locking screw engages the patented, horizontal threads, locking the screw into the plate

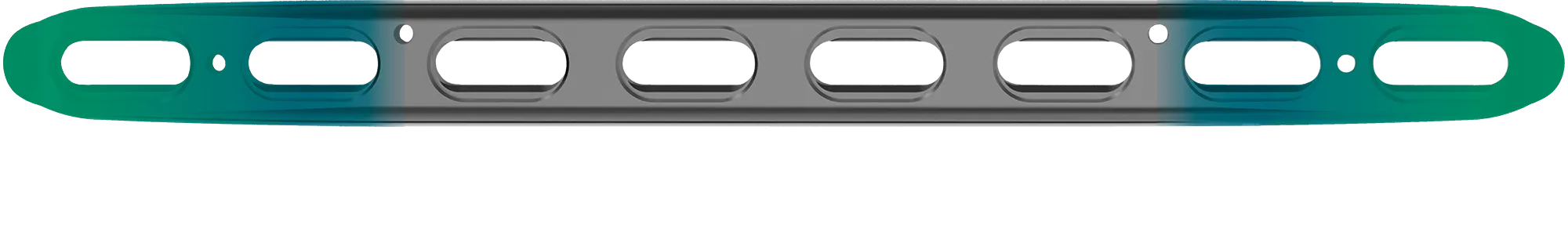

Callomimetic design mimics callus formation

FREEFIX FPS 3

Plate strength is decreased over the length of the plate to address stress shielding by unloading stress to the bone

Optimizing the olecranon osteotomy

Align and secure the osteotomy guide diagram

Align and secure the osteotomy guide to bisect the olecranon screw holes.

Optimal placement of the chevron osteotomy diagram

Optimal placement of the chevron osteotomy.

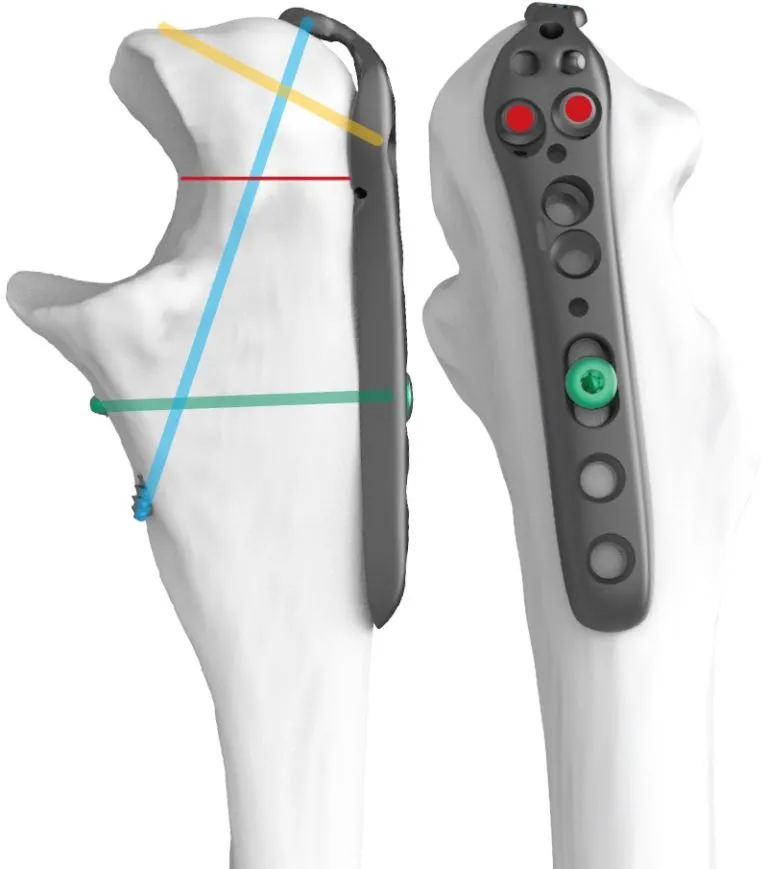

Secure fixation of osteotomy site via olecranon plate diagram

Secure fixation of osteotomy site via olecranon plate, home run screw, and interfragmentary compression.

PROTEAN® fragment plates for adjunctive fixation

Malleable in three planes

Vertical Plane

30º Per Node
30º Per Node

Horizontal Plane

5º Per Node
5º Per Node

Transverse Plane

45º Per Node
45º Per Node

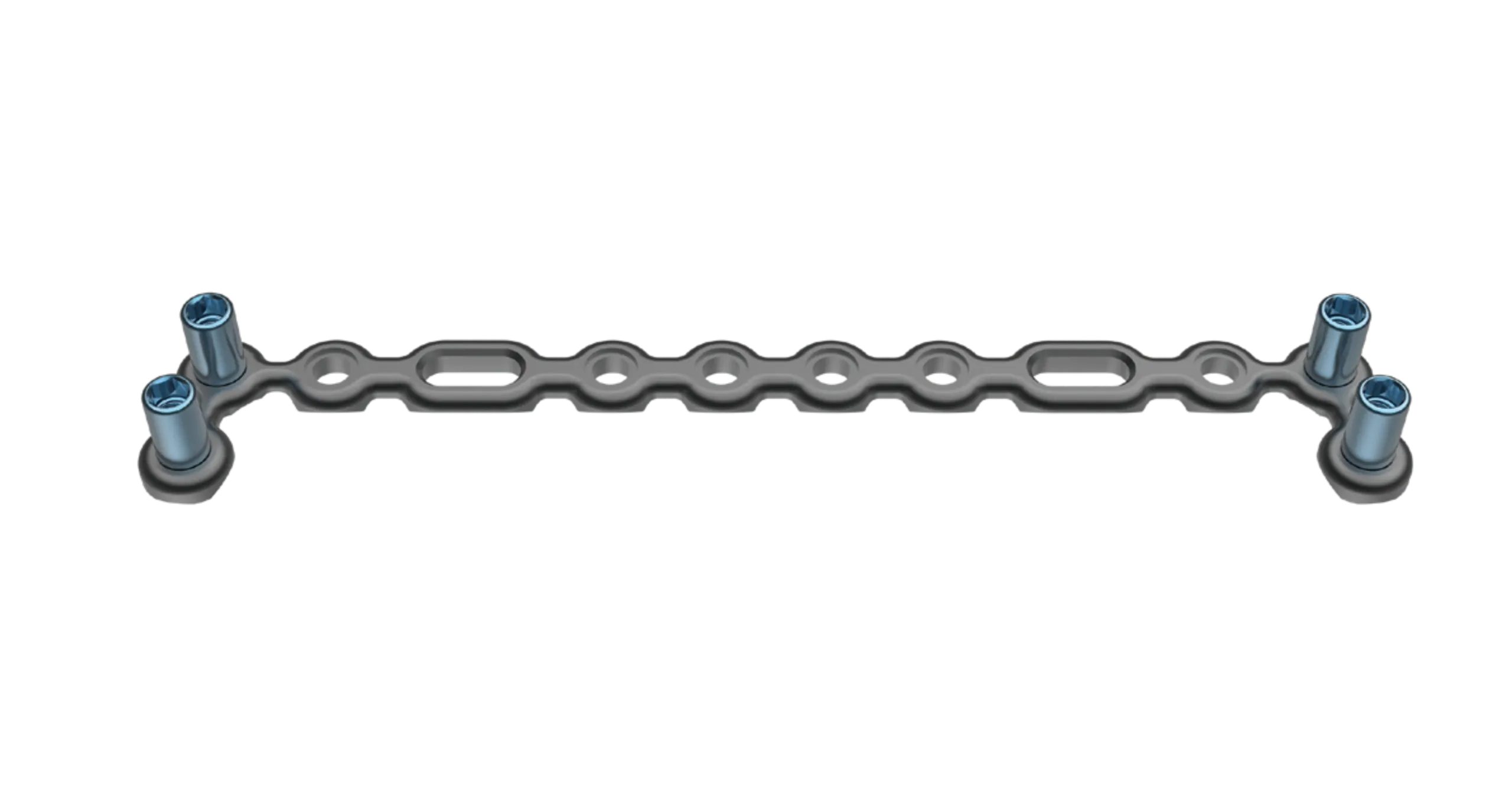

Protean® Double Hockey Stick Image

Double Hockey Stick

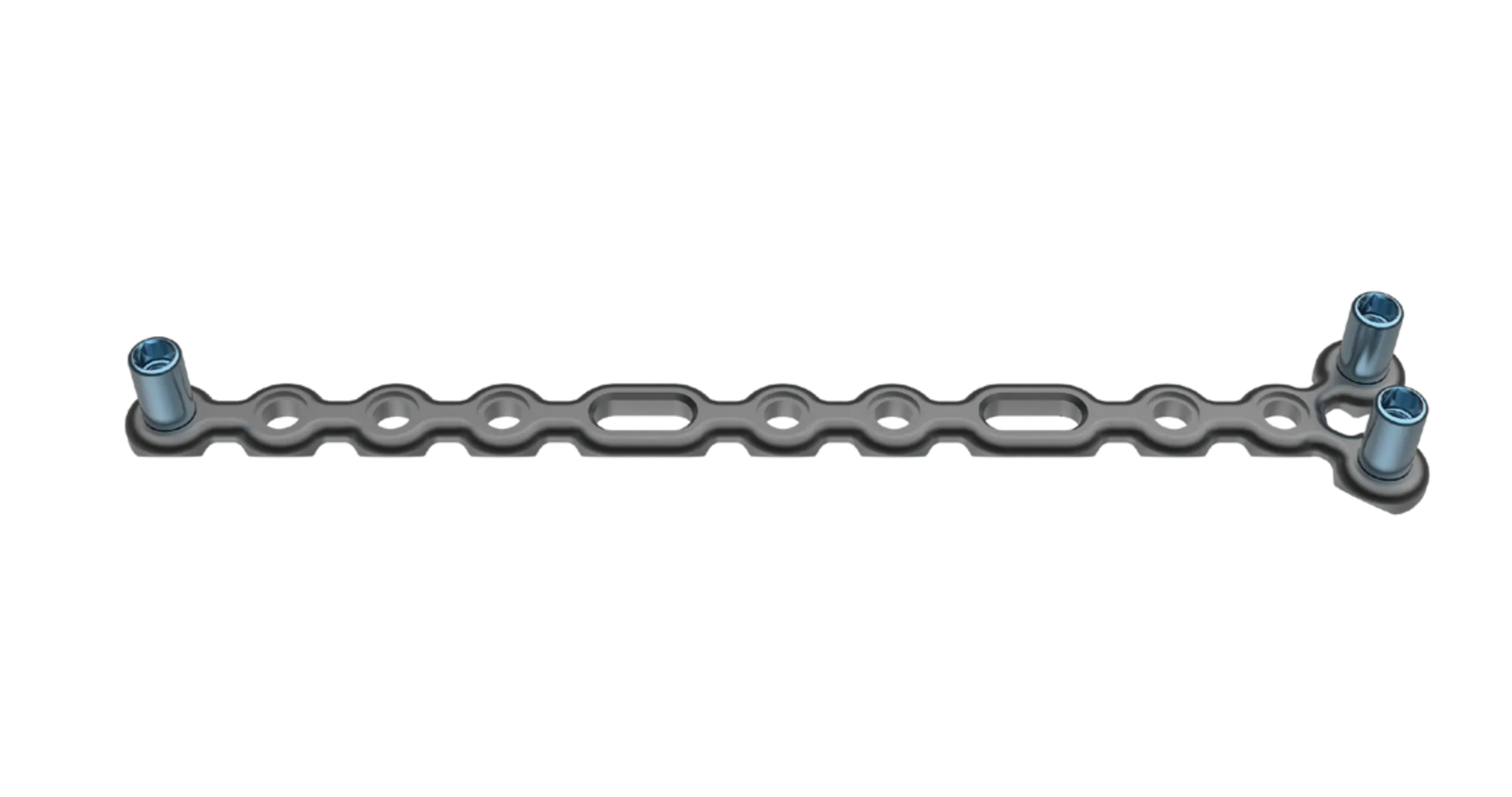

Protean® Y Straight Image

Y – Straight

360º Construct Rotation – Medial Capitellar

(Drag to rotate)

360º Construct Rotation – Medial Helix

(Drag to rotate)

360º Construct Rotation – Medial Lateral

(Drag to rotate)

360º Construct Rotation – Midshaft Broad

(Drag to rotate)

360º Construct Rotation – Midshaft Supracondylar

(Drag to rotate)
