GEMINUS® VOLAR PLATING SYSTEM

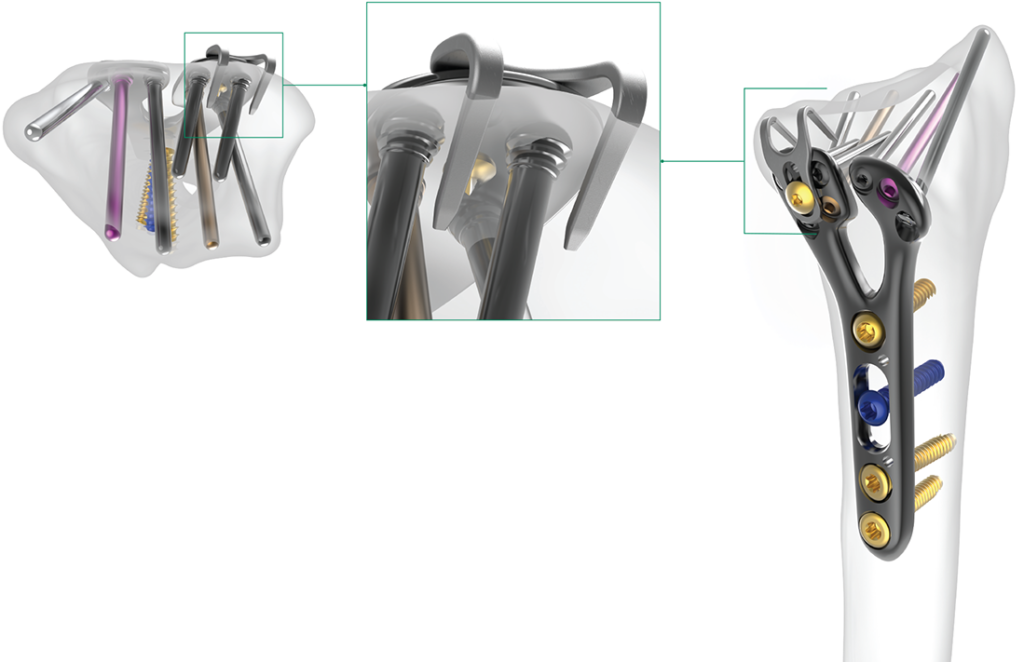

Optimized subchondral support while minimizing the potential for soft tissue injury

Dual head design protects flexor tendons by providing the lowest profile at the watershed line1

Screw trajectories designed to provide optimal subchondral support

AIMing Guides are pre-inserted distal drill guides to confirm reduction and screw trajectories prior to screw insertion

Hook plate option allows extending fixation to secure volar marginal fragments

FREEFIX® technology allows the fracture to dictate screw placement

Both compression and locking screws can be inserted in any position in FreeFix® slots

Patented horizontal thread pattern allows dynamic compression with locking screws

1.5mm of dynamic compression per slot

Customize your construct

Geminus XL Plates
XL Plates: With FreeFix® Slots
Geminus 7 Hole Plate
7 Hole Plate: Standard
Geminus 4 Hole Plates
4 Hole Plates: Wide, Standard & Narrow
Geminus 3 Hole Plates
3 Hole Plates: Standard & Narrow
Compression Non-Locking Screw
Compression Non-Locking Screw
Cortical Locking Screw
Cortical Locking Screw
Cortical Compression Non-Locking Screw
Cortical Compression Non-Locking Screw
Smooth Locking Peg
Smooth Locking Peg
Threaded Locking Screw
Threaded Locking Screw
Cannulated Polyaxial Locking Screw
Cannulated Polyaxial Locking Screw
High Compression Locking Screw
High Compression Locking Screw

360º Construct Rotation

(Drag to rotate)



PUBLISHED CLINICAL DATA: 1Limthongthang R, Bachoura A, Jacoby SM, Osterman AL. (2014) Distal Radius Volar Locking Plate Design and Associated Vulnerability of the Flexor Pollicis Longus.  J Hand Surg Am, 30(5): 852-860. DOI: 10.1016/j.jhsa.2014.01.038

2Salas C, Brantley JA, Clark J, Reda Taha M, Myers OB, Mercer D. (2018) Damage in a Distal Radius Fracture Model Treated With Locked Volar Plating After Simulated Postoperative Loading. J Hand Surg Am, 43(7): 679.e1-679.e6. DOI: 10.1016/j.jhsa.2017.12.019

3Orbay JL, Rubio F, Vernon LL. (2016) Prevent Collapse and Salvage Failures of the Volar Rim of the Distal Radius. J Wrist Surg, 5(1): 17-21. DOI: 10.1055/s-0035-1570745

4Orbay JL, Gray R, Vernon LL, Sandilands SM, Martin AR, Vignolo SM. (2016) The EFR Approach and the Radial Septum- Understanding the Anatomy and Improving Volar Exposure for Distal Radius Fractures: Imagine What You Could Do With an Extra Inch. Tech Hand Up Extrem Surg, 20(4): 155-160. DOI: 10.1097/BTH.0000000000000139

5Orbay JL, Badia A, Indriago IR, Infante A, Gonzalez E, Fernandez DL. (2001) The Extended Flexor Carpi Radialis Approach: A New Perspective for the Distal Radius Fracture. Tech Hand Up Extrem Surg, 5(4): 204-211. DOI: 10.1097/00130911-200112000-00004

6Orbay J, Shah A, White BD, Patel A, Vernon L. (2016) Volar Plating as a Treatment for Distal Radius Fractures. Plast Reconstr Surg Glob Open, 4(9): e1041. DOI: 10.1097/GOX.0000000000001041
